| TYPE | DESCRIPTION |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |
| Features | Charge Pump |

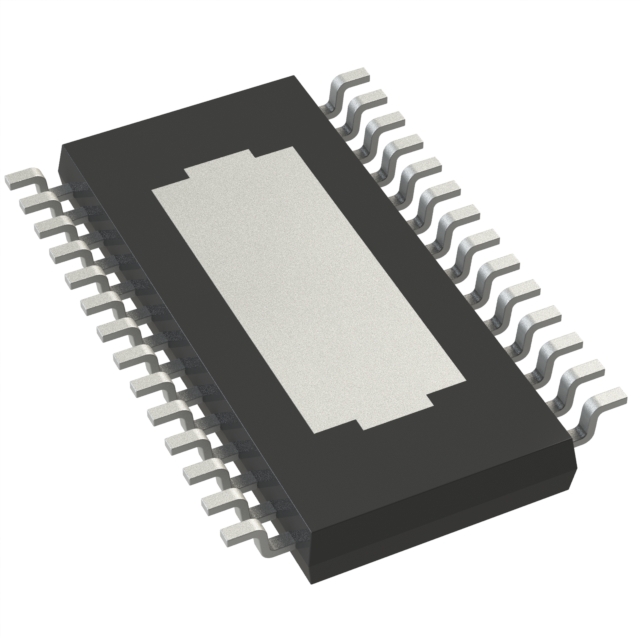

| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Interface | Analog, Logic, PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.5V ~ 33V |
| Rds On (Typ) | 550mOhm LS, 550mOhm HS |
| Applications | DC Motors, General Purpose, Solenoids, Stepper Motors |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | 1.5A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 33V |
| Supplier Device Package | 28-HTSSOP |
| Fault Protection | Current Limiting, Over Current, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
